VETUS
Marine Exhaust Systems and More in Sydney
Fenquin are New South Wales only official distributor for Vetus Boating Equipment and systems. Vetus supplies complete boat systems and equipment that are renowned worldwide for high quality and reliability. Vetus has built a reputation for offering products that are as innovative as they are easy to install and maintain.
For more information on the range of Vetus Boating equipment click here or contact Fenquin on 02 9605 5522.
VETUS ELECTRIC PROPULSION MOTORS
ELINE
VETUS's new E-LINE range of 48v marine electric propulsion motors offer silent, environmentally friendly cruising with exceptional maneuvering capabilities.
Available in three models with output power of 5 kW, 7 kW and 10 kW, the E-LINE is suitable as a re-power option or for new builds.
Supplied with Swap & Go mounting brackets, and adjustable motor mounts, the E-LINE can easily be adjusted in height and set to angles of 0° or 8°, making connection to existing propeller shaft simple.
The E-Line ranges offers
- Compact design utilizing Vetus's V-Can, plug an play technology
- Fast acceleration and instantaneous torque
- Direct drive, with no gearbox or clutch needed
- Active electric braking
- Battery protection function
- Boosted battery charge function
For more information click below

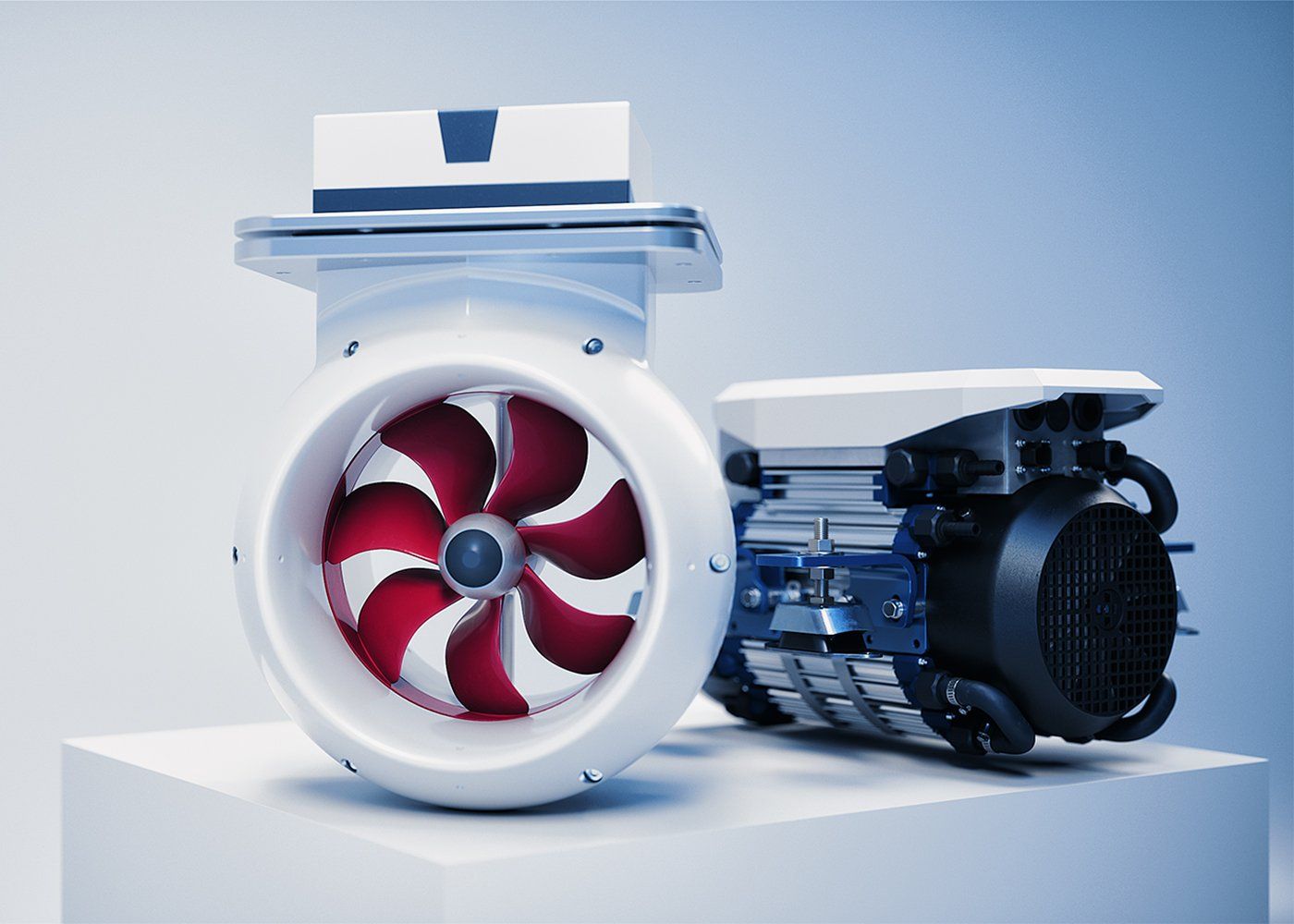

E-POD
Available with a power output of 10kw, Vetus E-POD combines the motor, suspension. cooling and propellor all in one unit, negating the need for propeller shaft, bearings.
With no moving parts in side the vessel, the E-POD opens up floor space and room, whilst offering the same performance feature of the E-Line range.
VETUS BOW & STERN THRUSTERS
Since Vetus introduced the first bow thruster for pleasure boats in 1982, Vetus thrusters have become arguably the world’s most popular bow and stern thruster for yachts and powerboats. Offering the right thruster for every boat and every situation. Vetus thusters are manufactured using the highest quality materials. Vetus bow and stern thrusters have built a reputation of providing high and efficient power along with reliable service.
The world of Vetus thrusters- a continuum of power outputs sizes and capabilities

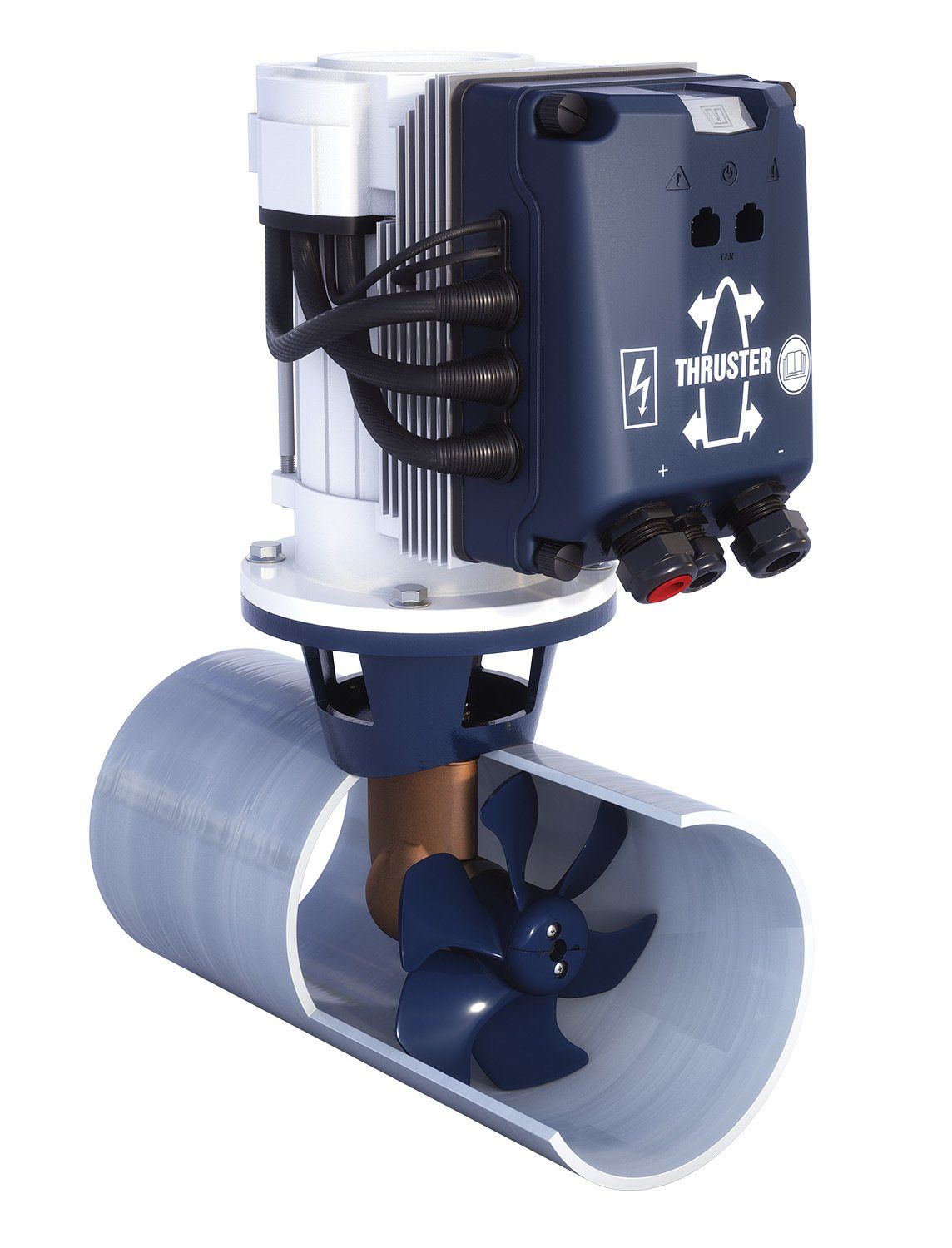

Bow Pro DC - AC induction thruster
Leading edge of thruster development
Revolutionary concept using induction motor with out carbon brushes making the motor maintenance free and offering an endurance rated run time*. Available in 12v with 30-76kgf thrust range & 24v 57-90kgf thrust. Suitable for vessels 18 to 50 feet. All Pro thrusters are proportionally controlled with lock and hold option available.
*
after specified run time power may reduce.Run time depends on battery capacity.
ACCESSORIES FOR THRUSTERS
Control Panels
Remote controls
Harnesses & battery switches
Thruster tunnels
Hydraulic power packs & controls
DC bow and stern thrusters
The original recreational boat thruster, developed and refined over 30 years of hard work for vessels ranging from 15 to 90 feet. in 12- or 24-volt applications.
DC Thruster brochure
Ignition Protected DC Thusters
Electric thruster with watertight and ignition protected motor housing for use in vessels with gasoline engines. Suitable for vessels ranging from 16-60 feet. Available in 12- or 24-volt.
Extended run time DC thrusters
New Paragraph
This electric motor can be run continuously for longer periods for more demanding applications for vessels ranging from 36 to 75 foot.
Retractable bow thrusters
Ideal for not disturbing hull lines or when there is insufficient draft to install a regular thruster. Suitable for vessels ranging from 25 - -60 feet. Available in 12- or 24.
Rim drive
An excellent bow and stern thruster option for long runtime, proportional control and virtually silent operation. Suitable for vessel 40 - 60 feet in length. Available in 48-volt only.
Hydraulic bow thrusters
Suitable for heavy duty application in vessels ranging from 35 -120 feet in length. Offering continuous run time, designed to be incorporated into a hydraulic power system.
Stern thrusters
Provides even greater manoeuvrability of your boat and is available in electric hydraulic, ignition protected and extended run time options.
ENGINE MOUNTS
Vetus offers a wide range of marine engine mounts to suit most applications. All Vetus flexible engine mounts are designed for marine applications, to accept propeller thrust and offer easy adjustment to assist with alignment.

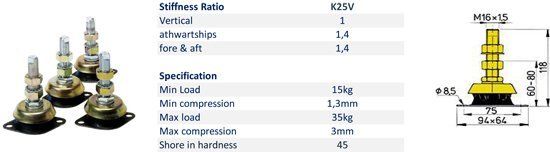

Type K25V
The Type K25V flexible engine mount contains a special rubber compound that offers excellent vibration damping properties. These mounts are suitable for small marine diesel engines and generators in the 6hp to 20hp range. Click image to enlarge.

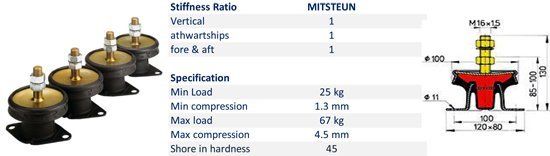

Mitsteun
The Mitsteun hydraulic engine mount is suitable for engines up to 35hp and offers superb vibration and noise reduction capabilities. Click image to enlarge.

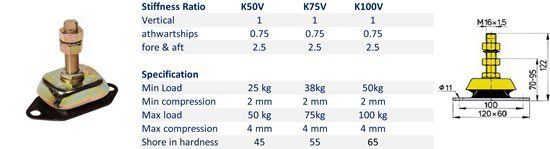

Type K
Suitable for smaller engines up to 80hp, the Type K flexible engine mount is available in three core hardness options. Click image to enlarge.

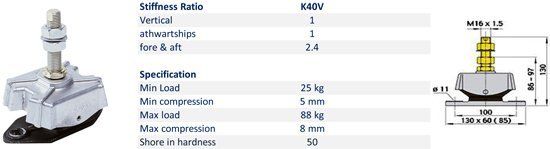

Type K40VM
Designed with the modern 3-cylinder diesel engine in mind, the K40V marine engine mount offers a relatively soft rubber compound that is specifically shaped to create optimum vibration dampening. Click image to enlarge.

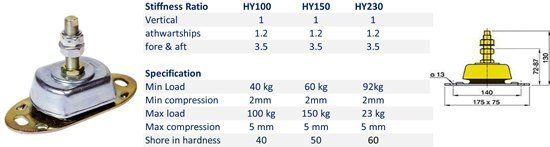

Type HY
Low vertical stiffness combined with high longitudinal stiffness makes this engine mount ideal for heavy weight engines with four or more cylinders up to 170 hp. The HY flexible engine mounts is available in three core hardness options. Click image to enlarge.

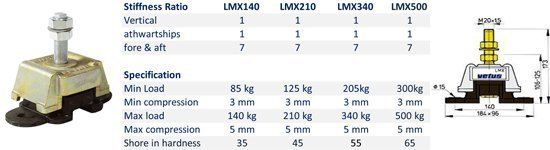

Type LMX
These flexible engine mounts have been designed with the power to weight ratio of modern diesels in mind, providing optimum vibration damping whilst allowing considerable thrust.
Available in four core hardness options, the LMX mounts are suitable for marine diesel engines up to 480hp. Click image to enlarge.
HOSES
Exhaust hose – type SLANG
Flexible and strong, Lloyd’s registered and meets SAE 2006 R2 standard.
Internal diameter size options: 30mm, 40mm,45mm, 50mm, 57mm, 60mm, 65mm ,75mm, 90mm, 100mm, 110mm, 125mm, 150mm, 200mm, 250mm and 300mm
Cooling system hose – type MWHOSE
Flexible and strong, suitable for all cooling fluids.
Internal diameter size options: 19mm, 25mm, 32mm, 38mm and 51mm
Fuel filler hose – type FFHOSE
Flexible NBR rubber, suitable for petrol or diesel. Meets SAE J 1527 and ISO7480 marine Fuel A2 standards.
Internal diameter size options: 38mm and 51mm.
Fuel delivery hose – type FUHOSEA
Suitable for petrol and diesel fuel, meets the CE Standard ISO7840 marine fuel A1.
Internal diameter size options: 6mm, 8mm, 10mm, 13mm, 16mm, 19mm and 25mm.
Transparent water hose – type DWHOSEA
Suitable for drinking water and grey waste, both suction and pressure.
Internal diameter size options: 10mm, 12mm, 16mm, 19mm, 25mm, 28mm, 30mm, 32mm, 35mm, 38mm, 40mm, 45mm and 50mm.
Wastewater hose – type WWHOSE
White PVC with steel inlay.
Internal diameter size options: 16mm, 19mm, 25mm, 38mm and 45mm.
Hot water hose – type HWHOSE
Made from EPDM rubber, suitable for drinking water. Temperature resistant up to 160 degrees.
Internal diameter size options: 13mm and 16mm.
AUTHORISED VETUS DISTRIBUTOR
CONTACT US
Please note that horsepower recommendations are estimates only. Contact our professional team at Fenquin for advice on the correct mount for your application.
